(Excerpts and information from 2008 Watts Griffis McOuat Technical Report⁽¹⁾)

Property Location & Infrastructure

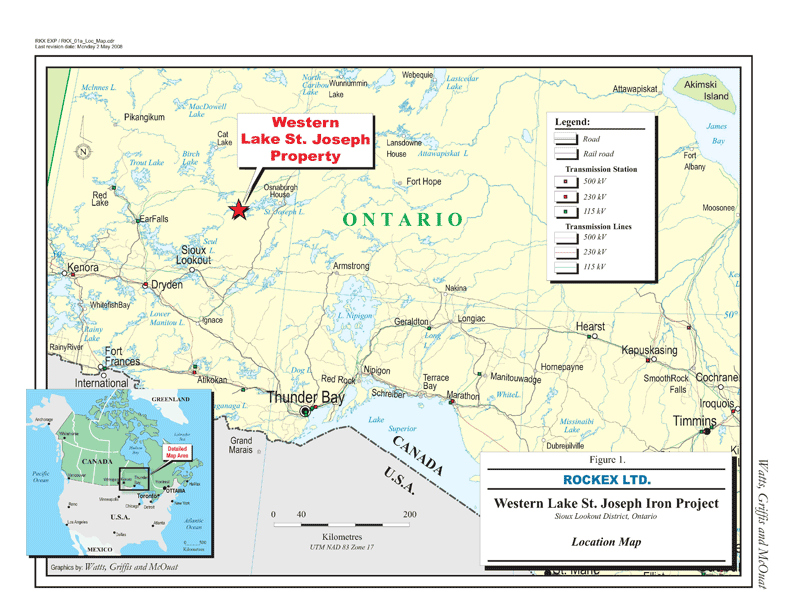

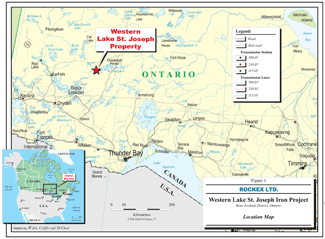

click on image to view enlarged

Rockex holds a 100% interest, subject to royalties in certain mineral claims in the Trist Lake Area, Patricia Mining Division, Sioux Lookout District, Province of Ontario, Canada (the "Property"). The Property is partly underlain by Algoma-type hematite/magnetite taconite iron formation. The principal deposits are known as the Eagle, Wolf and Fish Island Iron deposits and are situated in the southwestern part of Lake St. Joseph. The Property is located approximately 100 km northeast of Sioux Lookout, and 80 km southwest of Pickle Lake. Highway 599, which connects Pickle Lake to the Trans Canada Highway at Ignace, crosses the east end of Lake St. Joseph approximately 40 km east of the Property.

The Property consists of 27 contiguous mining claims covering a nominal area of 6,864 ha, Patricia Mining Division, held 100% by Rockex, but excludes three Licences of Occupation within the Rockex Property perimeter that include both surface and mineral rights and an alienation owned by Ontario Hydro that also includes both surface and mineral rights.

The nearest hydro-electric power to the Property is located at Slate Falls fed by a 115 kV transmission line. This line is probably insufficient to support a substantial iron mine. For its planned operations at the east end of Lake St. Joseph, Steep Rock applied for a permit to survey a route for a power line from Raleigh (just north of Ignace on Highway 17) to its property. The TransCanada gas pipeline follows Highway 11 through Ignace, Dryden and Kenora, 210 km south of the Property.

History

Prior to 1921	Iron exploration conducted on the Western Lake St. Joseph property
1920s - 1930s	Several drill programs focused on iron exploration
1956 - 1959	Property acquired by Lake St. Joseph Iron Limited (LSJI). LSJI carried out magnetic surveys, diamond drilling and extensive trenching
Early 1960s	Ontario Research Foundation and M.A. Hanna Mining documented a 'reserve' estimate of 240 million tons of open pit 'ore' to a depth of 400 ft averaging 35% iron.
1968 - 1969	Algoma Steel Corp. ("Algoma") optioned the property and carried out an exploration and testwork program to confirm the previous "reserve" estimate
1974 - 1975	Algoma carried out a diamond drill program focused mostly on Eagle Island. Testwork by Algoma included microscopic examination that revealed iron minerals are mainly hematite and magnetite, in an overall ratio of 1:1.
1975	Algoma pilot plant tests were completed using 375 tons of a 1,100 ton bulk sample taken from Eagle Island producing commercial grade concentrates with 65-67% iron, 4.5-5.5% silica with overall iron recoveries to concentrate of 85%. "Reserves" for Eagle and Fish islands (including a west extension) were estimated by Algoma at just over 1 billion tons at an average grade of 30.02% SFe.
Late 1970s	Studies were initiated along with Stelco Inc. and Dofasco Inc. to develop a large scale, multi-deposit operation in the Lake St. Joseph area with first development to include Algoma's Eagle Island deposit and Steep Rock Iron Mines Limited's deposits at the southeast end of Lake St. Joseph adjacent to Soules Bay.
Late 1978	The three Ontario steel companies agreed to pursue the project to advance development and position the project as a possible source of iron ore for the late-1980s.
May 2008	Rockex acquires the Western Lake St. Joseph iron ore property and begins exploration programs
June 2008	Technical 43-101 compliant report completed by Watts Griffis McOuat documenting historic exploration, mineralization and geology.

Geology & Mineralization

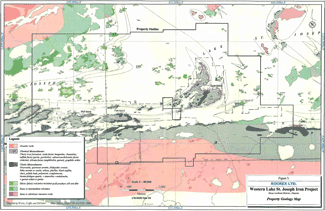

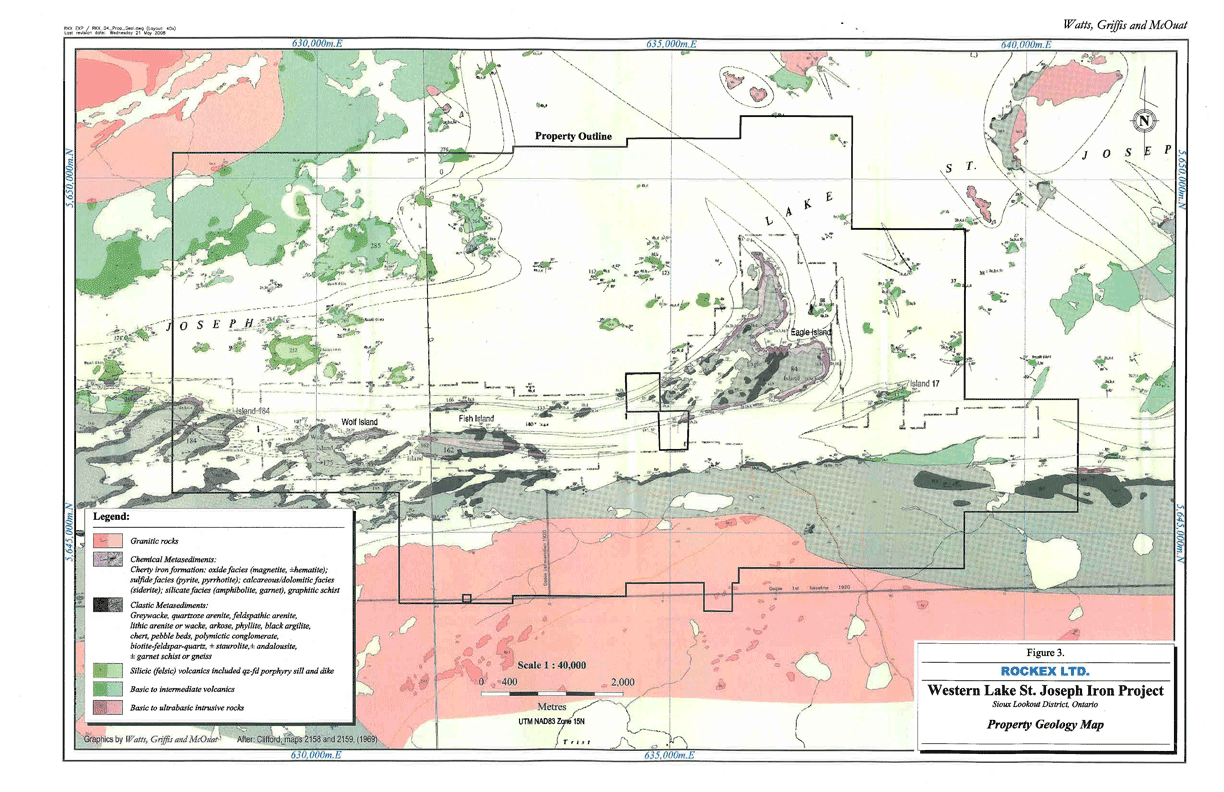

click on image to view enlarged

The Property is situated in the Lake St. Joseph Archean greenstone belt of the Uchi Subprovince of the Canadian Shield. The greenstone belt is underlain and surrounded by, or internally intruded by, both younger and older felsic and mafic plutons. The Property is located adjacent to the southern boundary of the Uchi Subprovince next to the English River Subprovince. The Lake St. Joseph greenstone belt is composed of four volcanic cycles and each is composed of basal tholeiitic basalt flows progressing upwards into dacitic to rhyolitic pyroclastic rocks. In the western Lake St. Joseph area, the Cycle 2 volcanics are unconformably overlain by a suite of
clastic and chemical sedimentary rocks that form the Eagle Island assemblage or Upper Clastic Rocks. It is in this assemblage that hosts the iron formation on the Property.

The base of the Eagle Island assemblage consists of eroded dacitic pyroclastic material derived from the upper part of the Cycle 2 volcanics. This is succeeded upwards by arenite and wacke-sandstone beds, interbeds of mudstone, conglomerate and banded iron formation. Iron oxides consist of fine grained specular hematite and magnetite. The ratio of hematite to magnetite is reported as 3:1 (in the reports from the 1950s) to 1:1 (reports from the mid-1970s). It is likely that in different parts of the deposit, different ratios of hematite to magnetite occur, but this distribution is not completely mapped out. Gangue is described as consisting of silica, sericite, mica, carbonate, chlorite with some hornblende and apatite. The distribution of sulphide components may be partly controlled by stratigraphy (graphitic horizons) but also by gold related alteration systems that affect various parts of the iron formation sequence. Metamorphism is typically greenschist facies in the western Lake St. Joseph area. Mafic metavolcanics contain chlorite-actinolite-albite and the clastic metasediments contain a chlorite-muscovite-biotite-quartz-albite assemblage.

The sedimentary assemblage is largely in the form of an east-west trending, steeply plunging syncline containing a pair of sub-parallel anticlinal folds. The tight and isoclinal folding has resulted in repeats in the iron formation sequence which is mainly coincident with the north, east and south shores of Eagle Island and dips steeply. Because of the folding, the bulk of the iron formation on the Property is concentrated on and adjacent to Eagle Island. A trenched and well drilled section of iron formation outlined by historic work on the north part of Eagle Island is in the order of 1.3 km long, 350 m to over 400 m wide (true thickness) and is well drilled to depths of 150 m to 200 m.

The south east extension of this north Eagle Island part of the iron formation extends to form the east and south limits of the south part of Eagle Island. This section along the southeast shore of Eagle Island is well mapped on surface, in trenches and diamond drillholes. The drilled and trenched portion of this domain has a strike length in the order of 2 km. Historic drill testing on cross sections at 250 m intervals has been to about 150 m vertical. The true thickness of the iron formation for this domain varies from approximately 200 m to 80 m with thicknesses diminishing with increasing distance along strike away from the north part of Eagle Island.

Fish Island is located about 2.5 km west of Eagle Island. Fish Island also appears to contain an increased thickness of iron formation. The multiple bands exposed on Fish Island may be due to parasitic folding along the south limb of the main structure but alternatively perhaps, might represent a repeated sequence at the nose of another isoclinal fold. Fish Island was trenched and drilled by LSJI with 10 drillholes on six cross sections testing the steeply, to vertically dipping zone over a strike length of 1.3 km to vertical depths of 100 m. Representative drillhole J-17 intersected 350 ft (106.7 m) of oxide iron formation grading 36% Fe. The true width of this zone is in the order of 91 m.

Rockex 2008 Exploration Program

Rockex's first exploration program on the Property was initiated in March 2008 and concluded in July 2008. It consisted largely of a limited-scope drilling program to validate historic drill results. The recommendations in the WGM Technical Report are mainly concerned with this program.

⁽¹⁾ Technical Report on the Western Lake St. Joseph Iron Ore Project, Ontario, Canada for Rockex Limited; Ricard Risto, P.Geo. and H.E.(Buzz) Neal, P.Eng., June 2008.
